Sensors/Cameras
MS Systems works with a range of manufacturers and suppliers to deliver the most fitting system for the job. If you don’t find what you’re looking for, please reach out. We work with a range of suppliers beyond those listed on the page.
Multispectral

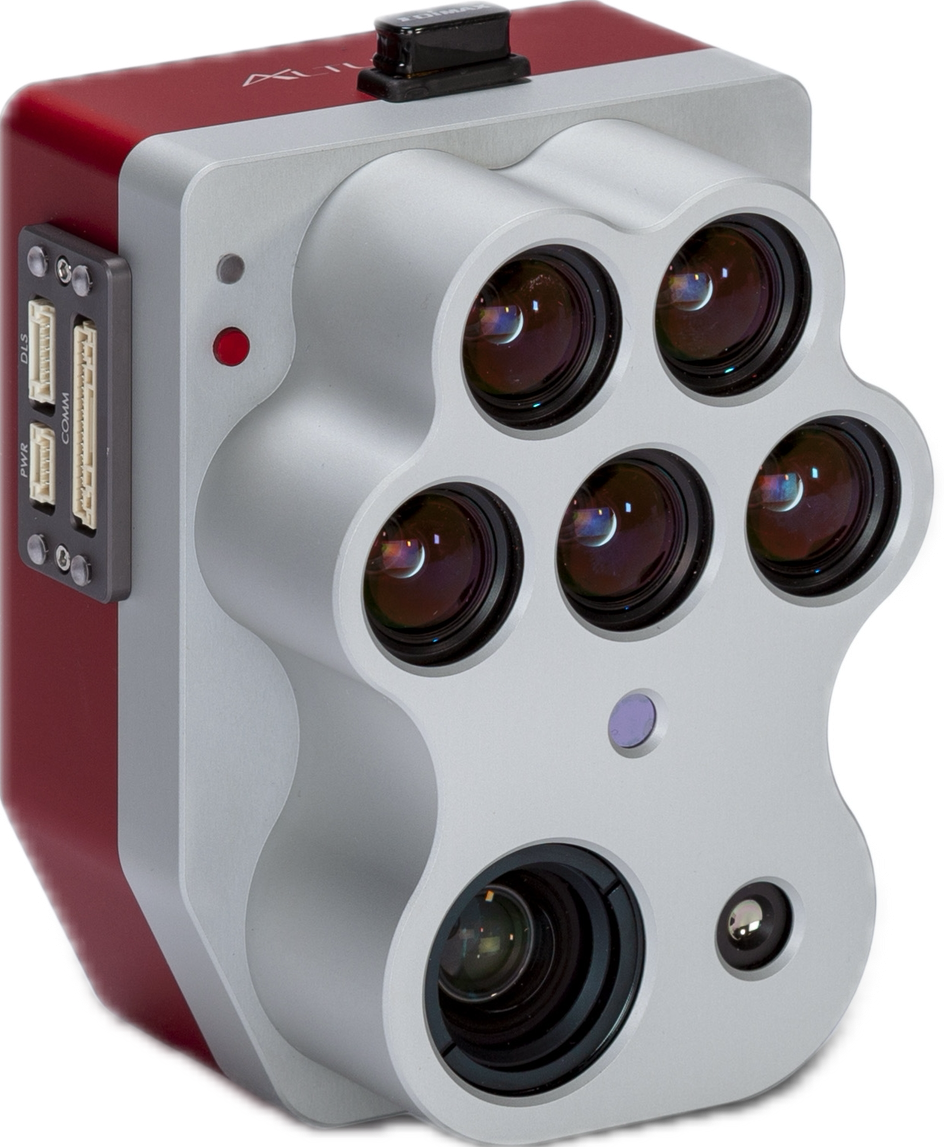

Altum-PT
The Altum-PT is ideal for projects needing high spatial resolution multispectral data, or a combination of multispectral and thermal analysis. It captures sub-leaf spatial resolution by using its panchromatic imager to up-sample multispectral data. This makes the Altum-PT the top choice for those requiring extreme detail of plant canopies or the delineation and analysis of very small plants. Plus, its integrated thermal imager is perfect for applications like irrigation and water stress detection.

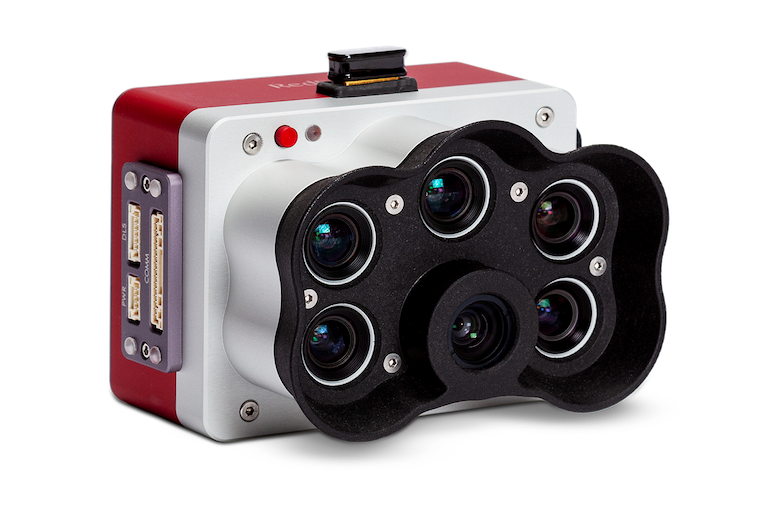

RedEdge-P
The RedEdge-P is an all-around go-to for plant-canopy analysis. Widely considered the best drone-based multispectral sensor available, it's used across agricultural research, environmental conservation, and production agriculture. Through pan-sharpening, it delivers five spectral bands with sufficient detail for most vegetation analysis.

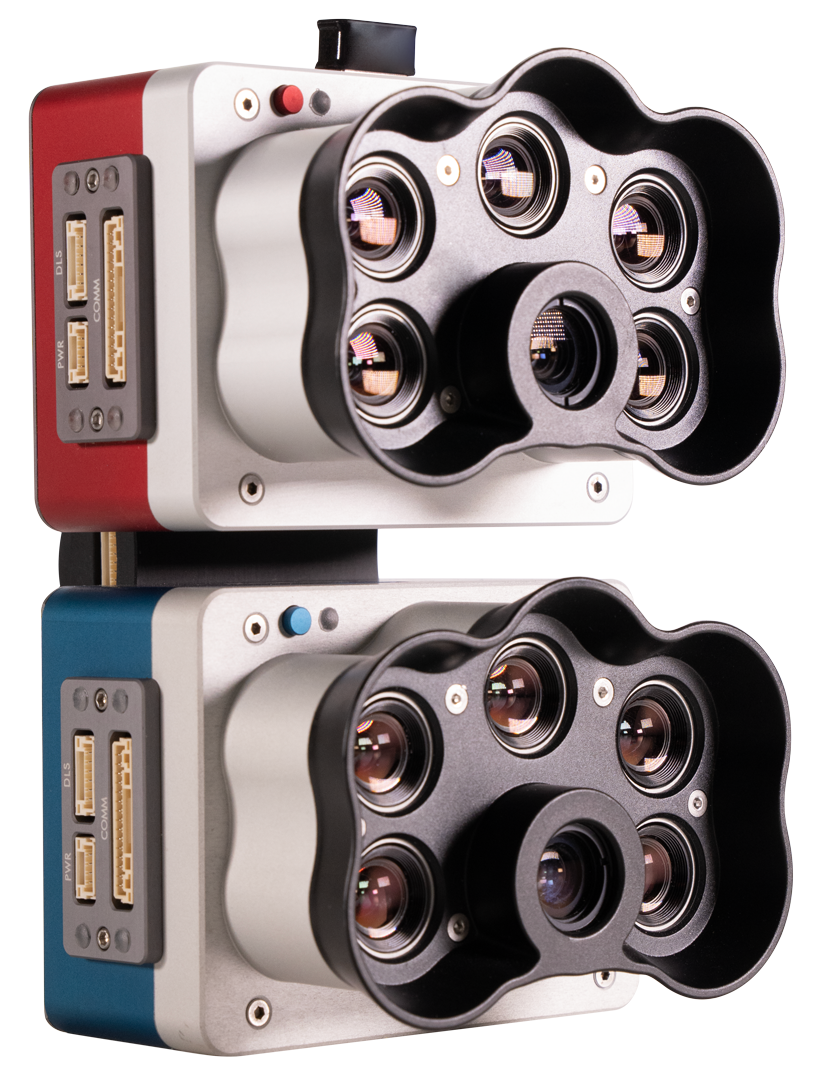

RedEdge-P Dual
This dual camera system delivers 10 unique spectral bandsacross the visible and near-infrared spectrum. This enables the collection of detailed spectral profiles, ideal for vegetation and landcover classification using machine learning. The variety of bands also allows for the discovery of unique indices or composites for diverse research applications. The RedEdge-P Dual is often considered an optimal balance between multispectral and hyperspectral data for vegetation research.

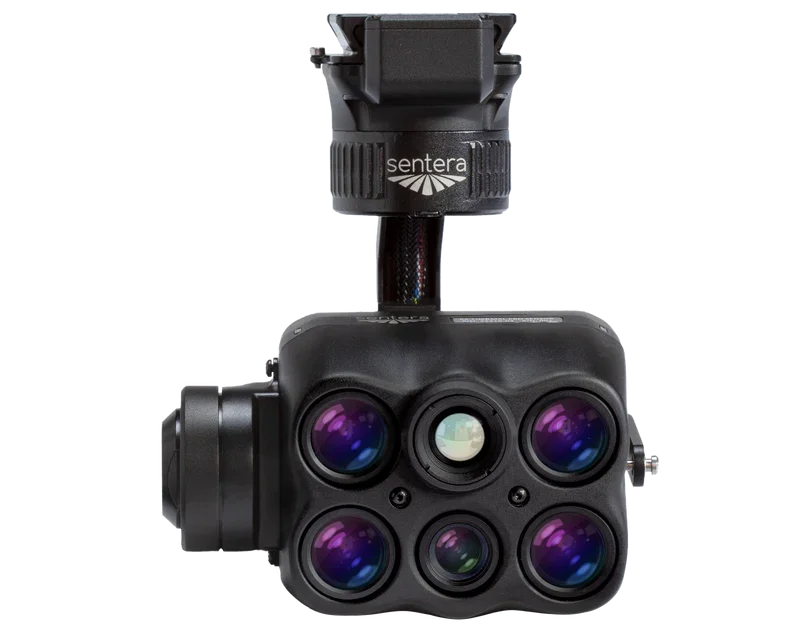

Sentera 6x Thermal Pro
The Sentera 6X Thermal Pro is an all-in-one aerial imaging powerhouse designed to capture multispectral, high-resolution RGB, and radiometric thermal data in a single flight. It features four 3.2 MP global-shutter multispectral imagers (Green, Red, Red Edge, and NIR), a 20 MP RGB camera, and a high-performance FLIR Boson 640R thermal sensor. This integration delivers four times the thermal resolution of standard models, providing a Ground Sample Distance (GSD) of 8.75 cm at 60 m. With a rapid 5 fps capture rate and a 512 GB internal SSD, it is the premier choice for complex plant-level analytics, including water stress monitoring, evaporation studies, and advanced irrigation management.
Hyperspectral

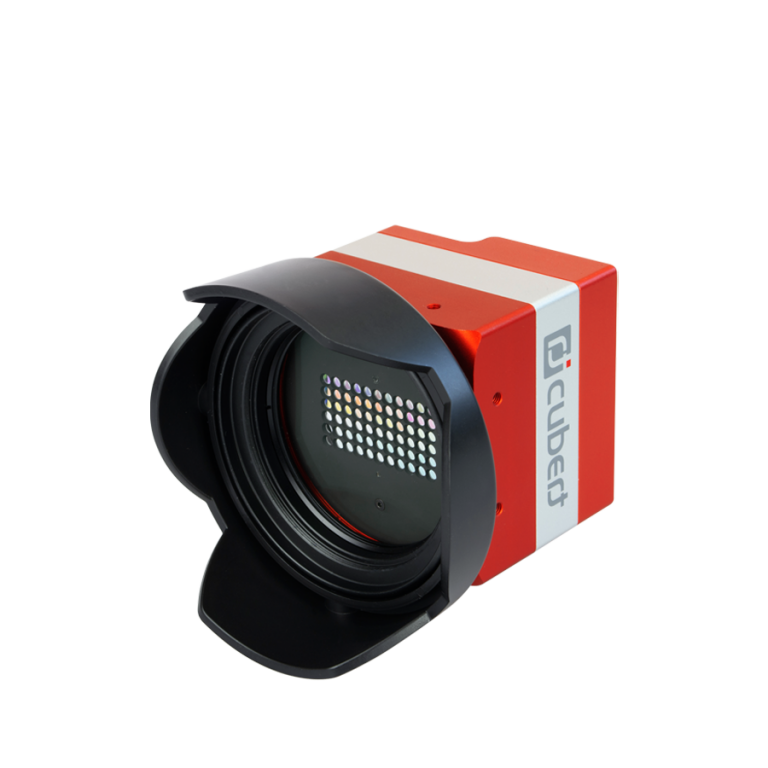

Ultris X20
The Cubert ULTRIS X20 is a groundbreaking hyperspectral snapshot camera that captures full 3D data cubes in a single frame, eliminating the need for scanning or movement. Utilizing advanced light field technology, it covers a broad spectral range from 350 nm to 1000 nm (UV-VIS-NIR) with 164 spectral bands at a native resolution of 410 × 410 pixels. Weighing only 350 g and capable of recording at 8 Hz, it is specifically designed for real-time applications where speed and portability are critical, such as UAV-based precision agriculture and industrial sorting.
RGB

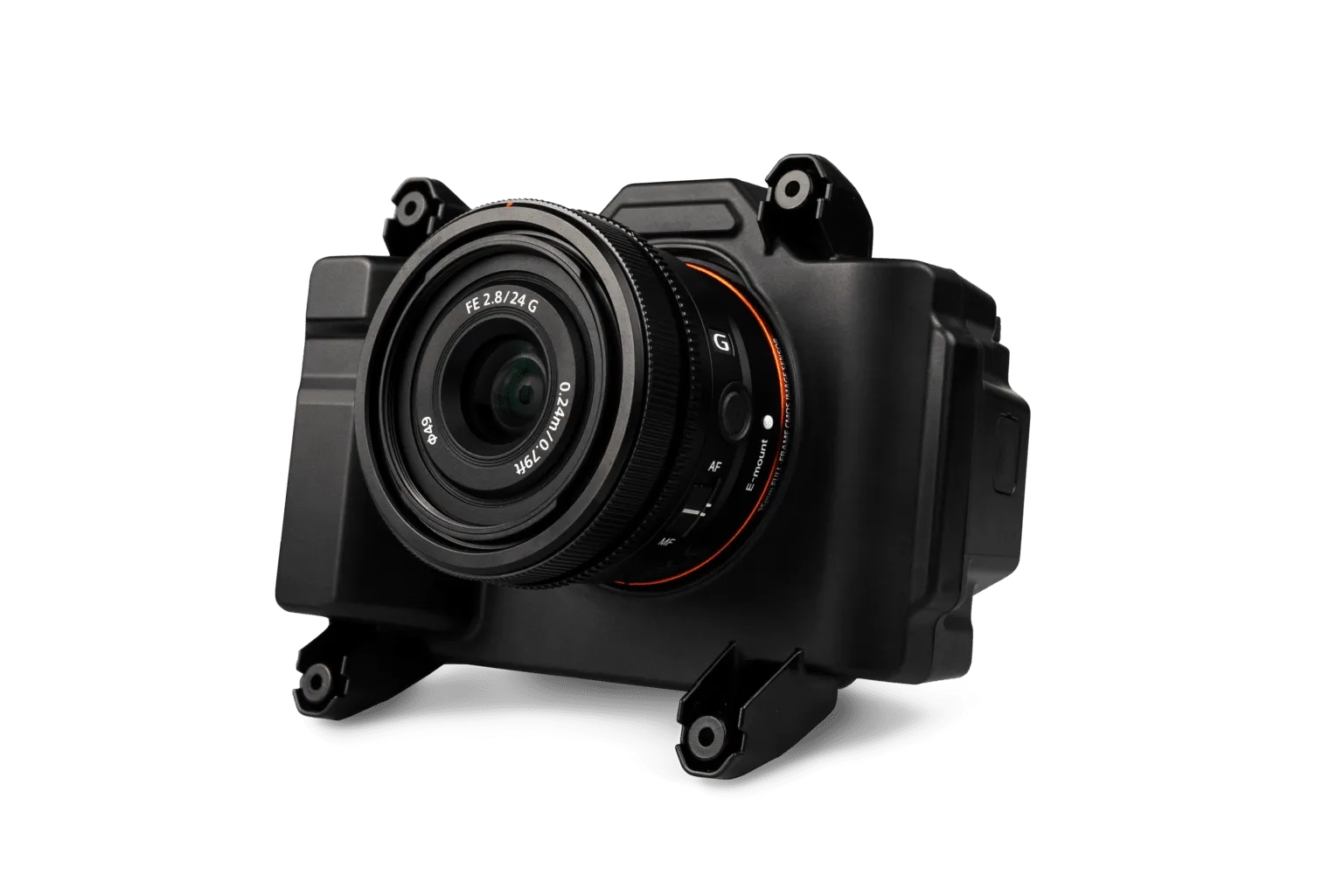

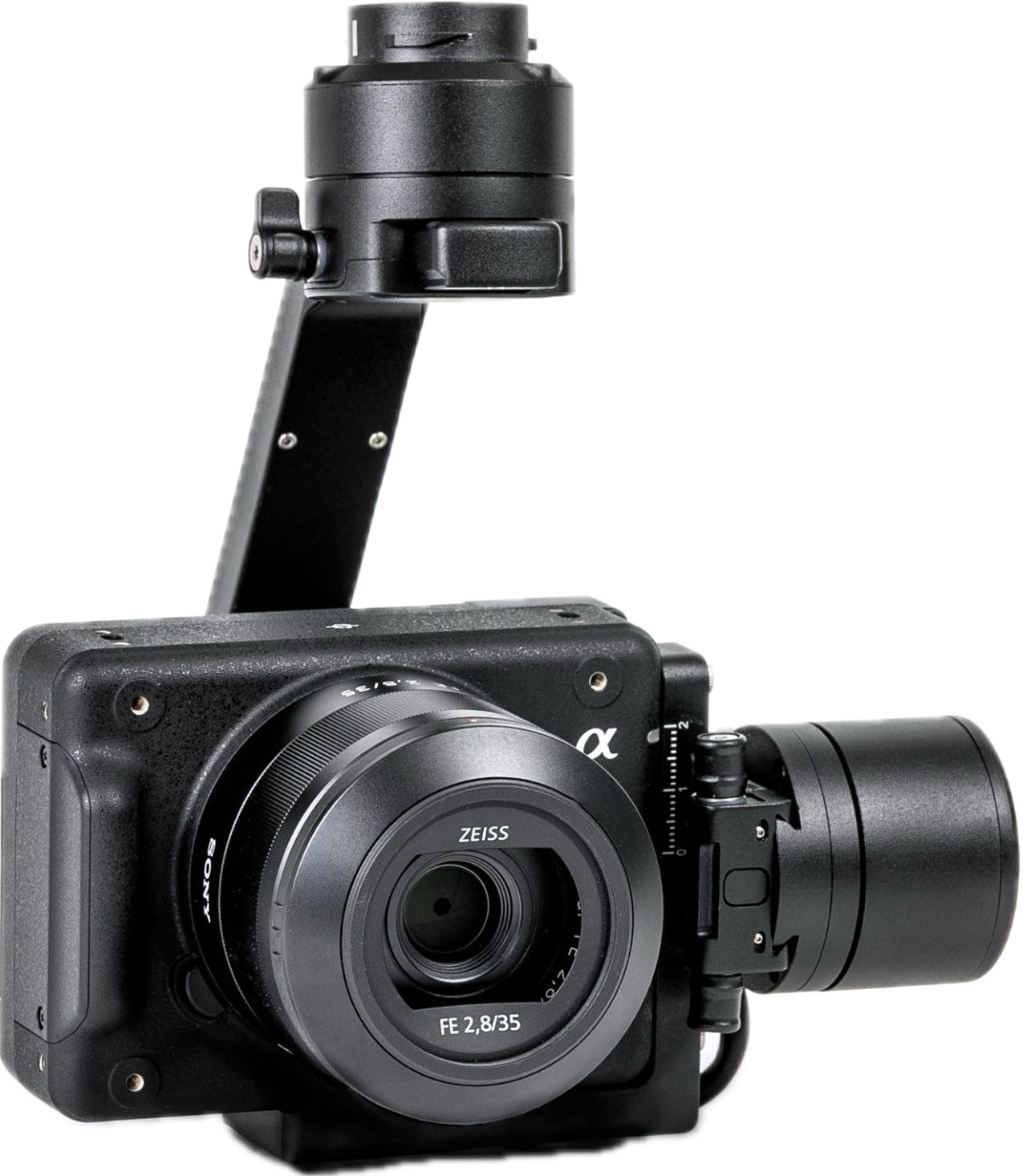

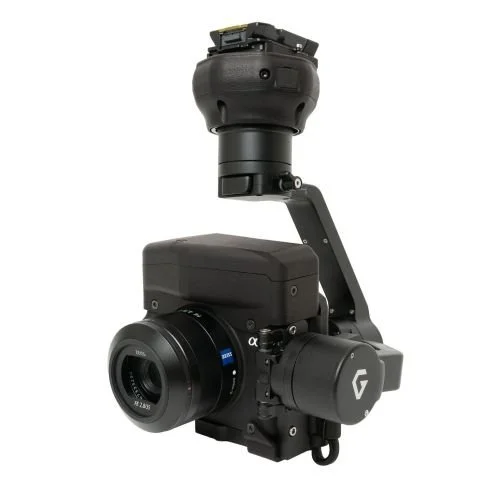

Sony ILX-LR1
The Sony ILX-LR1 features a 61MP sensor, delivering exceptional image quality for detailed analysis. This high-resolution capability makes it an ideal tool for generating precise datasets needed for deep learning applications, such as the detection and counting of individual plants, specific plant features, or other critical elements within the broader landscape. The Sony ILX-LR1 is plug-and-play with the Inspired Flight IF800 and WISPR SkyScout.

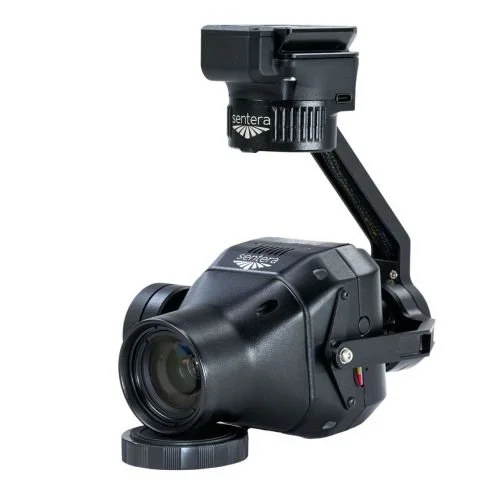

Sentera 65R
The Sentera 65R is a powerhouse 65-megapixel aerial sensor engineered for high-precision mapping and large-scale surveying. By utilizing a global shutter and a massive 9344 x 7000 native resolution, it captures ultra-sharp imagery without motion blur, allowing operators to cover more ground with 25% fewer images than standard sensors. Its lightweight, compact design—roughly 43% lighter than competitors—maximizes drone flight times, while integrated PPS synchronization and 512 GB of internal storage ensure seamless RTK-level accuracy for 3D modeling and precision agriculture. The 65R is plug-and-play with the Inspired Flight IF800
